Case Study
FRP Cascade Chutes for Dry Bulk Material Handling
at Port Terminals in the UAE
Port operations handling dry bulk materials require equipment that can withstand continuous abrasion, heavy loads, and harsh environmental conditions. At the same time, controlling dust emissions during material transfer is a critical operational and environmental requirement. Cascade chute systems play a key role in improving material flow while minimizing dust generation during loading operations.
This case study outlines the successful manufacturing and supply of custom FRP cascade chute cones for the replacement of existing deteriorated components at various port terminals across the UAE.
Project Overview
Project details:
- Project Name: Replacement of Existing FRP Cascade Chute
- Location: Various port terminals across the UAE
- Project Duration: 3 months
- Quantity: 15 FRP cascade chute cones
- Scope of Work: Manufacturing and supply of reduced cone-shaped cascade chute components
The requirement was to replace worn-out cascade chute cones with new, durable FRP components that could integrate seamlessly into the existing chute system.
Product and Application

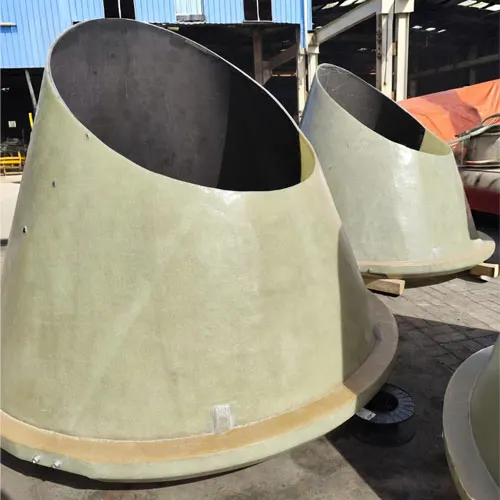

The supplied products consisted of FRP cascade chute cones used as part of a cascade chute system in port operations for loading and transferring dry bulk materials. Each FRP cone was manufactured with an internal diameter of 1900 mm, a height on the smaller side ranging from 800 mm to 1600 mm, and a wall thickness of 10 mm.
In cascade chute systems, cone-shaped components are arranged vertically to guide the controlled descent of bulk materials. This staged flow significantly reduces material velocity, minimizes dust emissions, and improves overall handling efficiency during loading operations.

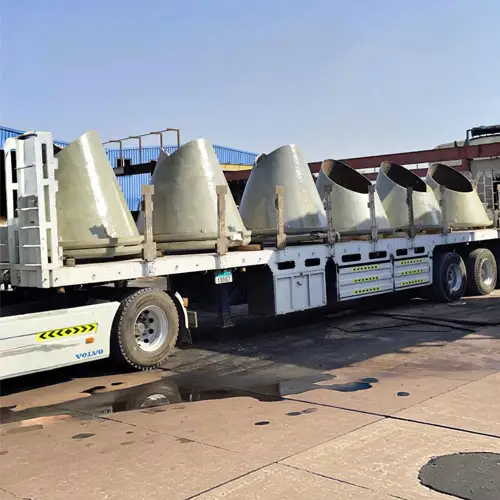

A total of 15 FRP cones were manufactured and supplied for installation at multiple port terminals across the UAE.
Key Performance Requirements
- High structural strength to withstand continuous material flow and load
- Resistance to abrasion caused by dry bulk materials
- Precise dimensional accuracy for proper insertion into the existing chute system
- Smooth external profile with no projections to allow sequential installation
- Ability to accommodate internal load-carrying mechanisms
- Durability in harsh port and marine environments
Customization and Manufacturing
All FRP cascade chute cones were fully custom-manufactured to suit the existing chute system and site-specific requirements. Custom conical moulds were developed to achieve the exact geometry required for smooth integration and reliable operation.
Manufacturing involved controlled FRP lamination to maintain consistent wall thickness and structural integrity. To enhance wear resistance, Hardox steel liners were securely fixed inside the FRP cones, providing protection against continuous abrasion from dry bulk materials.
Additional structural reinforcement was incorporated at the top section of each cone. Thicker structural ribs were designed to uniformly distribute the load carried by the chute system, ensuring long-term durability and operational safety.
Challenges and Solutions
The primary challenge was maintaining strict dimensional accuracy while ensuring that each cone could be inserted one by one into the cascade chute system without any external projections. Any deviation in geometry could have caused installation difficulties or operational issues.
Another critical challenge was concealing and accommodating the hook bracket system, which carries the entire load of the chute and connects to the lifting belt mechanism. This load-bearing component needed to be fully integrated without compromising the external profile of the cone.
These challenges were addressed through the development of custom conical moulds, precise fabrication techniques, and careful internal design planning. The hook bracket was fully accommodated within the cone geometry, while reinforced ribs ensured effective load transfer and structural stability.
Results and Conclusion
The project was completed within the planned three-month timeframe. All 15 FRP cascade chute cones met the required dimensional, structural, and wear-resistance specifications and were successfully supplied for installation by the client’s site team.
The new FRP cascade chute components provided a durable and efficient replacement for the existing deteriorated cones, improving material handling performance and reducing dust emissions during port loading operations.
This case study demonstrates the effectiveness of custom FRP cascade chute cones as a reliable solution for dry bulk material handling in demanding port environments.
